Data synced from the ActiveCampaign WooCommerce integration

Marketing_Plus_Professional_Enterprise

The ActiveCampaign WooCommerce integration lets you send actionable store data directly from a WooCommerce store to your ActiveCampaign account.

You can use this data to send customized follow-up emails to your contacts, trigger automations to run, create list segments, configure automation goals, and more.

Take Note

ActiveCampaign accounts created on or after January 8, 2024: contacts synced in from the WooCommerce integration that have checked the “Accepts Marketing” box will be added to the Master Contact List by default. If you delete or change the name of the ActiveCampaign-created Master Contact List, contacts will not be added to any lists. To add contacts to a list, you will need to create an automation

WooCommerce data on the contact record

When contacts sync from WooCommerce to your ActiveCampaign account, data will appear on their contact records.

Below, the Ecommerce widget and Orders widget pull in all new orders and orders brought in with a historical sync. The difference between these two widgets is the information that is displayed. The Ecommerce widget shows an overview of the orders, and the Orders widget shows the orders in more detail.

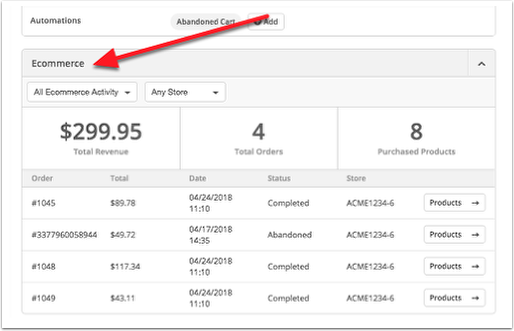

Ecommerce widget

The Ecommerce widget contains order and abandoned cart data for your connected store.


Here you can:

  • Sort data by activity and store name
  • View ecommerce metrics, including total revenue, total orders, and a total of purchased products
  • View order information, including:
    • Order number
    • Total (order price)
    • Order Date and time
    • Order status
    • Store name

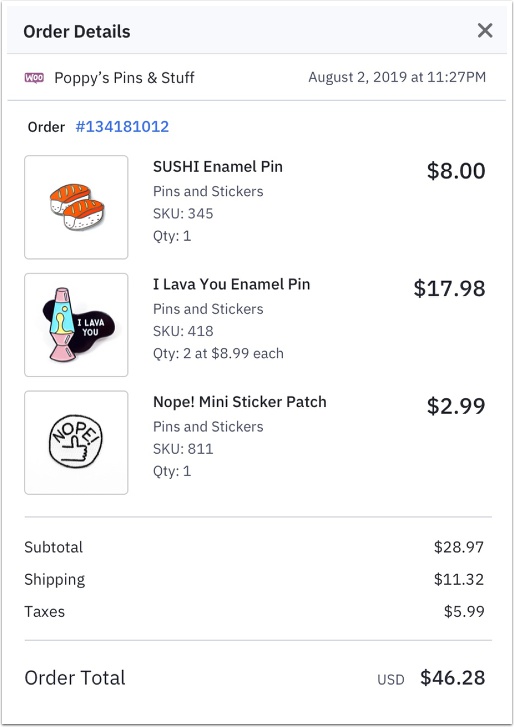

  • View product detail information. Each order listed in the object has a "Products" button. Clicking this button opens the order details for that specific order


Details here include:

  • Store name
  • Date and time of order
  • Order status
  • Order number (Clicking the Order ID number opens the order in your connected WooCommerce store)
  • Order total
  • Order date and time
  • Discount code and discount price
  • List of products contained in the order:
    • Image of the product (if available)
    • Product name
    • Product category
    • SKU
    • Quantity ordered
    • Product price

Additional Ecommerce data in Orders widget

The following information appears on the contact’s Order widget:

  • Connection ID
  • Store’s Order ID
  • Order Number
  • Cart ID
  • Store’s External ID

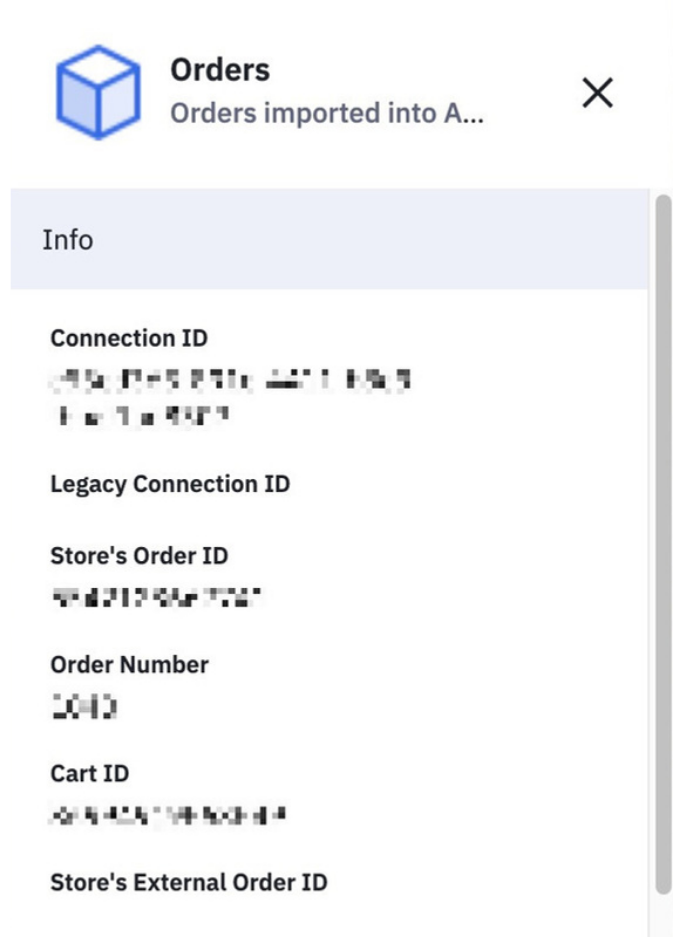

  • You can also view detailed order information by clicking the three dots on the right side of the order widget and then clicking the “Details” button. Clicking this button opens the “Orders” window. This window shows the detailed order data synced into ActiveCampaign for that specific order.

Orders window in Orders widget example .png

Details in the "Orders" window include the fields listed in the Additional Ecommerce order data section below.

  The Postal Address and Marketing Opt-in (Accepts Marketing) information can only be found in the Orders Widget “Orders” window.

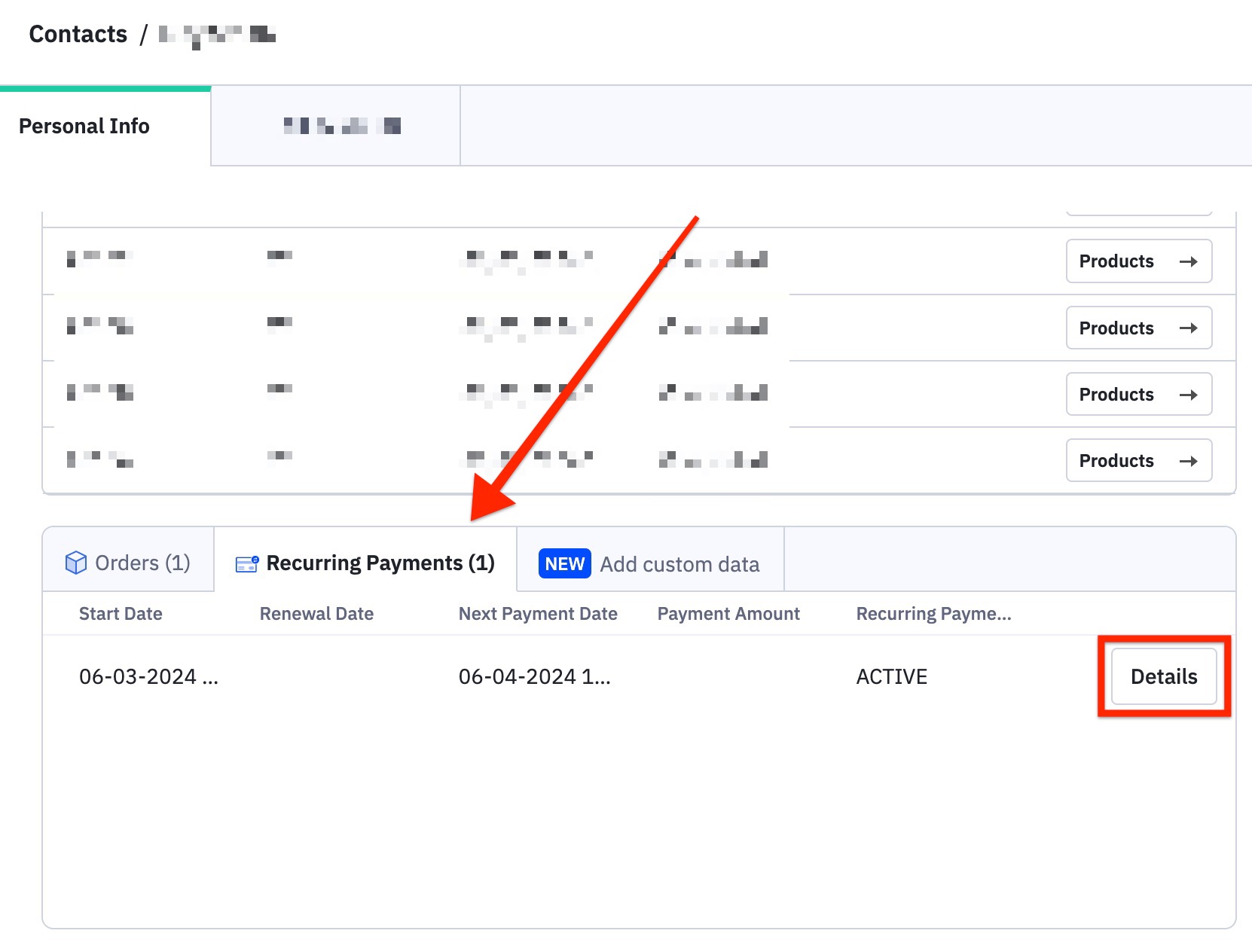

Recurring Payments widget

The Recurring Payments widget shows subscription data from your connectd ecommerce store. Learn more about Recurring Payments and what data is synced.

Recurring Payments widget in Contact Profile.jpg

Ecommerce information on the contact's activity stream

The following information appears on the contact's activity stream:

  • Synced order information
  • Abandoned carts

WooCommerce store tags

Contacts who sync from WooCommerce will have the following tag on their records: woocommerce-customer.

"Accepts Marketing" information

This integration syncs all contacts who check the "Accepts Marketing" box and those who don't.

To see which contacts opted into marketing through your WooCommerce store, you can either:

  • View the "accepts marketing" field in the orders details widget by clicking the “details” button on the right side of the order widget
  • Create an advanced search using the "Ecommerce" > "Has opted into marketing" segment condition
  • Create an advanced search using the “Ecommerce" > "Order" > "Accepts Marketing" = "true” segment condition

Custom Order Status Mapping

With the ActiveCampaign WooCommerce integration, you can select custom order statuses from your WooCommerce store and map it to a standard status field in ActiveCampaign. This helps sync the correct order status from your WooCommerce store to ActiveCampaign to keep your store and ActiveCampaign data aligned.

To update your custom order status mapping, go to the ActiveCampaign for WooCommerce plugin and click “Settings” > “Advanced Settings.”

Currently, the default mapping and standard statuses we support are:

WooCommerce Standard Order Status ActiveCampaign Standard Order Status
pending PENDING PAYMENT
on-hold WAITING
processing COMPLETED
completed COMPLETED
failed FAILED
refunded REFUNDED
canceled CANCELED
wc-pending PENDING_PAYMENT
wc-on-hold WAITING
wc-processing COMPLETED
wc-completed COMPLETED
wc-failed FAILED
wc-refunded REFUNDED
wc-canceled CANCELED



  You cannot change any of the standard status mapping options in ActiveCampaign..

Fields imported from WooCommerce

Below is a list of fields imported from WooCommerce and the fields they are mapped to in ActiveCampaign. These fields appear on profile records for synced contacts.

WooCommerce fields ActiveCampaign fields
First name First name
Last name Last name
Email Email
Company field under “Customer billing address” Account
Phone field under "Customer billing address" Phone
Product Name Product Name
Product Category Product Category
Product ID Product ID
Order Price Order Price
Order Currency Order Currency

Additional Ecommerce Order Data

WooCommerce Field ActiveCampaign Field Description
status Order - Order status Status of the order in ActiveCampaign. Order status must be one of the following: Pending, Completed, Abandoned, Recoverd, Waiting, Canceled, Refunded, Failed, or Returned
connection_id Order - Connection Id The globally unique unique identifier for integration to ActiveCampaign
id Order - Store's Order Id The ID of the order in your store. ActiveCampiagn uses this as a primary identifier within a connection to know if an order you are sending is a new order or an updated order. This must be unique per connection ID. If an update operation is sent using an order ID that already exists, we will override the existing order, not create a new one
number Order - Order Number The order number in your store. Generally, an order number is an easily readable number such as 1001, whereas a Store Order ID might be a globally unique identifier that requires technology to read
externalcheckoutid Order - Cart ID The ID of the cart associated with your order in your store
id Order - Store’s External Order ID If your store has an external order ID, store it here. For example, if you are a WooCommerce store that dropships Amazon orders, your WooCommerce order ID will be the Store’s Order ID, but the Amazon Order ID will be the Store’s External Order ID
(set dynamically based on code) Order - Creation Source Whether the order was synced via active or historical syncing. The value must either be HISTORICAL or REAL_TIME
billing_email Order - Email Customer Email associated with the order. This email will be the email associated with the ActiveCampaign contact created for the order
ac_customer _id Order - Store’s customer ID the ID for the customer in your store
date_created Order - Store Created Date When the order was created in your store. Must be in the format “2019-11-16T10:48:23Z”
date_modified Order - Store Modified Date The most recent date the order was updated in your store. Must be in the format “2019-11-16T10:48:23Z”
status Order - Store Status status of the order in your store
customer_note Order - Notes A list of notes assigned to this order
  Order - Location ID ID for the store location
shipping_method Order - Shipping Method shipping method of the order
(WC function get_edit_order_url) Order - Order URL the URL for the order record in your store
  Order - Is Test Order If true, this is a test order. If false or not set, this is a normal order
accepts_marketing Order - Accepts Marketing whether the customer opted into marketing
  Order - Customer Locale language & global region. This must be in the format EN_US (in this example, American English)
  Order - Channel Channel where the sale came from
total Order - Final Amount total order amount, expressed as a decimal number
discount _total Order - Discounts amount Total amount of any discounts applied to the order, expressed as a decimal number
shipping_total Order - Shipping Amount Total amount charged for shipping on the order, expressed as a decimal number
payment_method Order - Payment Method Method used for payment
shipping_first_name Order - Shipping Address First Name First name on shipping address
shipping_last_name Order - Shipping Address Last Name Last name on shipping address
shipping_address_1 Order - Shipping Address line 1 Shipping Address line 1
shipping_address_2 Order - Shipping Address line 2 Shipping Address line 2
  Order - Shipping Address line 3 Shipping Address line 3
shipping_city Order - Shipping Address city Shipping Address city
shipping_state Order - Shipping Address province Shipping Address province
shipping_country Order - Shipping Address country Shipping Address country
shipping_postcode Order - Shipping Address postal (zip code) Shipping Address Postal (zip code)
shipping_phone Order - Shipping Address phone Shipping Address phone
shipping_company Order - Shipping Address company Shipping Address company
shipping_email Order - Shipping Address email Shipping Address email
billing_first_name Order - Billing Address First Name Billing Address First Name
billing_last_name Order - Billing Address Last Name Billing Address Last Name
billing_address_1 Order - Billing Address line 1 Billing Address line 1
billing_address_2 Order - Billing Address line 2 Billing Address line 2
  Order - Billing Address line 3 Billing Address line 3
billing_city Order - Billing Address city Billing Address city
billing_state Order - Billing Address province Billing Address province
billing_country Order - Billing Address country Billing Address country
billing_postcode Order - Billing Address postal (zip code) Billing Address postal (zip code)
billing_phone Order - Billing Address phone Billing Address phone
billing_company Order - Billing Address company Billing Address company
billing_email Order - Billing Address email Billing Address email
(WC function get_coupons) Order - Discounts A list of discounts. A discount is made up of Discount Code, Discount Amount, and Discount Type. Discount Code is a string such as “NEW50” that comes from your store. Discount Amount is a decimal representation of the amount discounted. Discount Type must be either SHIPPING or ORDER



  SMS fields do not sync from WooCommerce to ActiveCampaign.

Additional Ecommerce segment conditions

You can learn more about and see a list of all of the available Ecommerce segment conditions.
